Saturday, June 18, 2011

How to resolve setup errors when registry keys are missing (Failed to install and configure assemblies C:\Program Files (x86)\Microsoft SQL Server\90\NotificationServices\9.0.242\Bin\microsoft.sqlserver.notificationservices.dll in the COM+ catalog)

Hi Guys ,
A couple of weeks back we had a setup issue where the SP3 setup was failing on Notification services and Client components .I am sharing my experience with you because it took us a lot of time to figure out that a few registry keys were missing .This explanation has 3 parts viz.

First Part : Solution of the issue .
Second Part : Reproducing this issue and finding a solution in a better way so that the same type of process can be followed for other similar setup issues as well .
Third Part : 2 bugs (Unfortunately , I could not reproduce it on my machine, but repeatedly reproduced it on clients machine .Will still try on my machine and file them later.

First Part : Issue and its solution .
Issue
As per the Security Bulitin MS09-004 we rasied a change to patch the DEV (and later would be Prod Servers)server to SQL Sevrer 2005 SP3 .Since we were failing on the DEV Server , we were not able to initiate the setup on Prod until the setup on Dev is resolved . Till then the Prod was under potential threat of SQL injection. The issue was that we were not able to upgrade SQL Server 2005 RTM (32 bit) to SQL Server 2005 SP3 (32 bit) on Windows Server 2008 (64 bit) .

Error Messages
Setup Errors :
Failed to install and configure assemblies C:\Program Files (x86)\Microsoft SQL Server\90\NotificationServices\9.0.242\Bin\microsoft.sqlserver.notificationservices.dll in the COM+ catalog.
Error: 2148734209
Error message: Unknown error 0x80131501
Error descrition: MSDTC was unable to read its configuration information. (Exception from HRESULT: 0x8004D027)

Errors in Application log :
Unable to get the file name for the OLE Transactions Proxy DLL. Error Specifics: hr = 0x8004d027,
d:\rtm\com\complus\dtc\dtc\xolehlp\xolehlp.cpp:176, CmdLine: C:\Windows\syswow64\MsiExec.exe -Embedding 0E2EA3ADA5DC17201B521333814654B2 C, Pid: 3484

Failed to read the name of the default transaction manager from the registry. Error Specifics: hr = 0x00000002,
d:\rtm\com\complus\dtc\dtc\xolehlp\xolehlp.cpp:382, CmdLine: C:\Windows\syswow64\MsiExec.exe -Embedding 0E2EA3ADA5DC17201B521333814654B2 C, Pid: 3484

Errors in SQL Server :
QueryInterface failed for "ITransactionDispenser": 0x8004d027(XACT_E_UNABLE_TO_READ_DTC_CONFIG).

Client Environment Details
SQL Server 2005 RTM 32 bit Standard Edition (WOW mode)
Windows 2008 64 bit Standard

Troubleshooting done
-> The setup was failing only for Notification services and Client tools .Rest all components were successfully upgraded to SP3 .
-> Found the Both Notification services and Client tools were failing because of same error :

---------------------------------------------------------------------------Product : Client Components
Product Version (Previous): 1399
Product Version (Final) :
Status : Failure
Log File : C:\Program Files (x86)\Microsoft SQL Server\90\Setup Bootstrap\LOG\Hotfix\SQLTools9_Hotfix_KB955706_sqlrun_tools.msp.log
Error Number : 29549
Error Description : MSP Error: 29549 Failed to install and configure assemblies c:\Program Files (x86)\Microsoft SQL Server\90\NotificationServices\9.0.242\Bin\microsoft.sqlserver.notificationservices.dll in the COM+ catalog. Error: -2146233087
Error message: Unknown error 0x80131501
Error description: MSDTC was unable to read its configuration information. (Exception from HRESULT: 0x8004D027)
---------------------------------------------------------------------------

---------------------------------------------------------------------------Product : Notification Services
Product Version (Previous): 1399
Product Version (Final) :
Status : Failure
Log File : C:\Program Files (x86)\Microsoft SQL Server\90\Setup Bootstrap\LOG\Hotfix\SQLTools9_Hotfix_KB955706_sqlrun_tools.msp.log
Error Number : 29549
Error Description : MSP Error: 29549 Failed to install and configure assemblies c:\Program Files (x86)\Microsoft SQL Server\90\NotificationServices\9.0.242\Bin\microsoft.sqlserver.notificationservices.dll in the COM+ catalog. Error: -2146233087
Error message: Unknown error 0x80131501
Error description: MSDTC was unable to read its configuration information. (Exception from HRESULT: 0x8004D027)
---------------------------------------------------------------------------
-> Detailed MSP logs showed that the error comes when MSDTC is trying to register the notification services using regsvcs

Error: 2148734209
Error message: Unknown error 0x80131501
Error descrition: MSDTC was unable to read its configuration information. (Exception from HRESULT: 0x8004D027)
Error Code: -2146233087
Windows Error Text: Source File Name: sqlca\sqlassembly.cpp
Compiler Timestamp: Sat Oct 25 08:47:00 2008
Function Name: Do_sqlAssemblyRegSvcs
Source Line Number: 155


-> So the issue was with registering Notification Services DLL file which was common to both NS and Client components .As you can see RegSvcs was being called from inside the function Do_sqlAssemblyRegSvcs.

-> We then tried to manually register the microsoft.sqlserver.notificationservices.dll through command prompt :
%windir%\Microsoft.NET\Framework64\v2.0.50727\RegSvcs.exe /fc "C:\Program Files (x86)\Microsoft SQL Server\90\NotificationServices\9.0.242\Bin\microsoft.sqlserver.notificationservices.dll"

-> This did not work and we were getting some other error .

-> Since COM+ Catalog was also showing up in the error ,I ran the SQL Server RTM setup and found the the SCC ( System configuration check ) is failing on COM + Catalog requirements .
->So,I checked the Component Services (DCOMCNFG) and found that there are no issues there .Everything was working fine .We also noticed that there were no errors related to COM components in the Application logs as well except the error related to MSDTC .The 32 bit COM components were also running fine .This was strange but made me believe that this error might be misleading .

-> We checked the SQL Sevrer errorlogs and found the same entry related to MSDTC , but in a slightly different manner :
QueryInterface failed for "ITransactionDispenser": 0x8004d027XACT_E_UNABLE_TO_READ_DTC_CONFIG)

-> We also saw some errors related to MSDTC :
Unable to get the file name for the OLE Transactions Proxy DLL.
Error Specifics: hr =
0x8004d027,d:\rtm\com\complus\dtc\dtc\xolehlp\xolehlp.cpp:176, CmdLine: C:\Windows\syswow64\MsiExec.exe
-Embedding -E2EA3ADA5DC17201B521333814654B2 C, Pid: 3484

Failed to read the name of the default transaction manager from the registry. Error Specifics: hr = 0x00000002,
d:\rtm\com\complus\dtc\dtc\xolehlp\xolehlp.cpp:382,
CmdLine: C:\Windows\syswow64\MsiExec.exe
-Embedding 0E2EA3ADA5DC17201B521333814654B2 C, Pid: 3484

-> Now the picture was clear that MSDTC had issues for sure. Also the COM+ Catalog warning is related to MSDTC issue (I had resolved the same issue a few years back :http://ms-abhay.blogspot.com/2009/10/msdtc-was-unable-to-read-its.html. But it was on Win server 2003)

-> The first error code is same 0x8004d027 but the second error code , which is coming before 0x8004d027 is 0x00000002 is nothing but telling us that there is some registry key missing ( there might be more ) . error 2 means "System cannot find the file specified".

-> Since we were not sure of which key was missing we decided to uninstall and reinstall MSDTC . This will automatically recreate all the missing registry keys.

-> But there was some more twist left. On windows Server 2008 we cannot simply uninstall MSDTC by using command "msdtc -uninstall" .We have to remove the MSDTC server role >> reboot the server >> re-add MSDTC in the Server roles.

-> We tried that ,but even after removing MSDTC from the server role , it was still showing as running in the services console .We tried a few times without success.

-> In between we also tried to repair .net framework 3.5 SP1 which did not help .

-> I also went through this article which talks about making sure that all the MSDTC related keys are present in the registry hive:
http://msdn.microsoft.com/en-us/library/dd300421(v=WS.10).aspx(This was the 1st step towards solution , although it did not work.)

-> However , the keys mentioned in this article were present in both WOW mode and normal mode in the Registry .

-> Then on my machine I tried to find the registries with the value "OLETransactionManagers". The first Key hit was : HKEY_CLASSES_ROOT\OLETransactionManagers

-> Since SQL Server was running in WOW mode on client's server , we tried to find HKEY_CLASSES_ROOT\Wow6432Node\OLETransactionManagers key and got it in first attempt.

-> However , on my laptop this key had some values while there were no values on the Client side registry key (mentioned above).

-> We found that these 64 bit MSDTC registry keys were there but the 32 bit (WOW mode) registry keys related to MSDTC were missing .

-> We created these keys in WOW mode

HKEY_CLASSES_ROOT\Wow6432Node\OLETransactionManagers
String value name = DefaultTM and value data=MSDTC

HKEY_CLASSES_ROOT\Wow6432Node\OLETransactionManagers\MSDTC
String value name=DLL and value data=MSDTCPRX.DLL


->We restarted MSDTC and SQL Server . We checked the SQL Server errorlogs and found that MSDTC related error is no longer showing and also the SQL Server SCC check was not showing that error related to COM+ Catalog any more.

->This gave us some hope and with that hope we hoped that the setup will run successfully .This in turn did happen (",).

Second Part: Reproducing the error
I reproduced this on my machine by removing all the keys from HKEY_CLASSES_ROOT\OLETransactionManagers

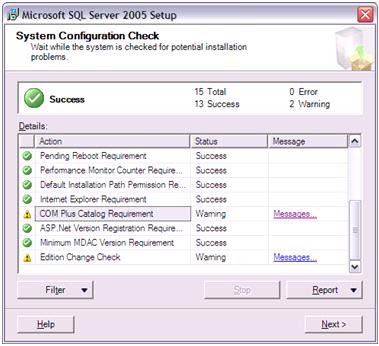

When I ran the setup it gave me the same warnings on SCC :


I will still go ahead with the setup and select only the client components to install :


The setup will encounter this error:

Let’s check the Application logs:

At this stage First let me introduce a tool that can show you how to find the missing registry key or if there are any permission related issues .I have been using this tool since long now .This tool is Procmon from sysinternals http://technet.microsoft.com/en-us/sysinternals/bb896645".We will use this tool to find the missing registry keys .However this tool captures a lot of information of all the processes .So we need to first PAUSE it as soon as we launch it .


Now, we will find the process ID of MSIEXEC.exe from Task Manager since as per the Application logs its the msiexec command that is failing:


I will now filter it on those 3 PIDs



Once it’s done, uncheck the PAUSE icon (the magnifying glass) and click on the retry option on the setup window. Quickly after that ,again PAUSE the Procmon by clicking on the magnifying glass icon. Notice the output in the Procmon. You will see a lot of different keys there .We now need to delete not necessary entries:


Right click on SUCCESS and select:

Right click on RegOpenKey and select:

You are now left with only 6 keys to look at(You can follow the same steps for other missing Reg keys issues ) and all these keys are REGQueryValue:

Now ,notice the error copied above from application log:
*******


Now, double click on each of the 6 keys (start from the bottom most) and select the option >> PROCESS. You will notice the same command line string as showing in the application logs:

So the first key that is missing is HKCR\OLETransactionManagers\DefaultTM .The reason it’s not showing all the missing keys is because it’s failing on first key itself. If you create the first key and then click on retry button on the setup the Procmon will show you the next missing key.

But what should be its value .We can check on other servers (preferably same server version).Create the missing keys and click on retry button .The setup will be successful (in our case it was SP3 and not the initial setup .But the resolution is same).

Third part : The Bugs
1) The issue is , when the SP3 setup fails it should ideally rollback everything to normal .So the NS and client tools should work fine.But On the client's server we saw that the Management Studio stop working and throws an error ( I dont have the screenshot now . Will try and reproduce it ) . The only solution is to uninstall the client tools and reinstall again .During the setup you will again get this error .Click on ignore and the setup will complete .

2) On my laptop , I saw that it also corrupt other components of SQL Server 2008 like Books on Line ..Again I do not have that proof now but will reproduce it .The solution is to uninstall client tools and reinstall tools of SQL Server 2008.


Happy Learning !!
